Budapest, district III, Bcsi t 254. - GABION retaining wall supporting car park at OPEL MAXABO Kft.

Designed and constructed by:

PANNON GABION Kft.

Constructed:

between 07-18 October 2008

Construction period:

10 days

Retaining wall material:

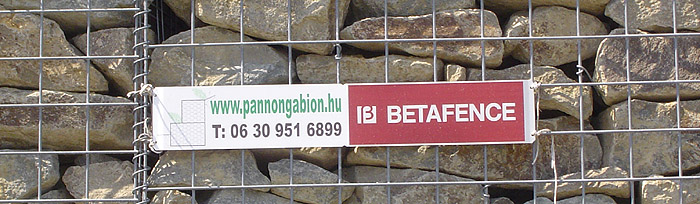

BETAFENCE welded mesh GABION

Mesh:

75 x 75 mm, wire thickness: 4.55 mm on the head panels and 3.00 mm elsewhere



Anti-corrosion coating:

zinc-alu. (95% Zn + 5% Al)

Filling stone:

55-160 mm grain size white limestone

Retaining wall length:

30.00 m

Retaining wall inclination angle:

0 degree

Retaining wall base thickness:

2.00 m

Retaining wall height:

1.50-4.00 m

Retaining wall volume:

128 m³

Pannon Gabion

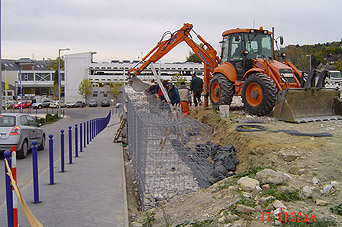

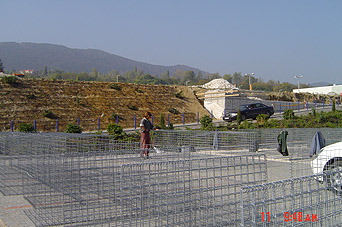

GABION retaining wall supporting car park at OPEL MAXABO Kft.

GABION retaining wall supporting car park at OPEL MAXABO Kft.

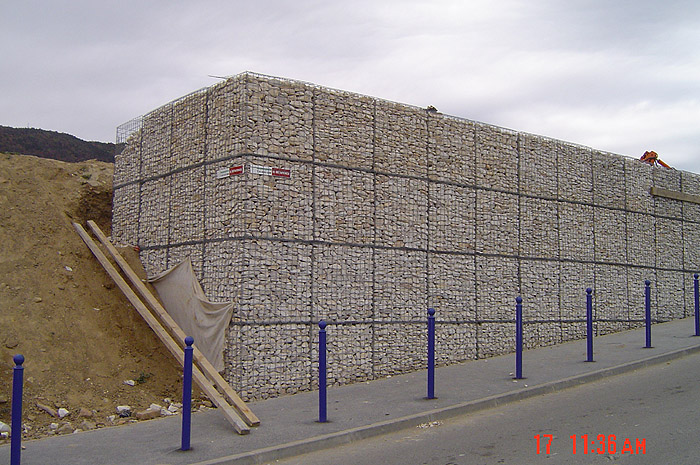

GABION retaining wall supporting car park at OPEL MAXABO Kft.
